Step By Step Install CentOS 7 on Vmware Workstation With Screenshots

Today, I’m going to show you, Install CentOS 7 on Vmware Workstation. First of all, we’ve to Download the CentOS 7 ISO image. CentOS is a freely available OS that is based on Red hat ENT. Linux system. You can download the CentOS ISO from its website. please go to the link and download bootable ISO.

https://www.centos.org/download/

Follow the below Steps to Install CentOS 7 :

Open Vmware:

After you finish downloading ISO file, then please open VMWare and click on create the virtual machine, then Select installation media or source (select your recently downloaded CentOS 7 Image)open ISO file. Now you inserted installation ISO file ready to install your OS virtually.

Also Read- Install CentOS 7 related other article.

Vmware Settings:

Enter details (User Name & Password ) Setup the virtual server disk space, RAM and number of cores for Centos – Check Virtual Machine Name and Location (Virtual Machine Backup path)– check disk capacity. Then click the Power button to start your Virtual Machine.

when your virtual machine starts you’ll see welcome screen of installation CentOS. You can up-down keyboard Key.

How to Step By Step Install CentOS 7 on Vmware Workstation

Select and Enter – Install CentOS 7

Press the ENTER key to begin the installation process. – now start the installation process. select your language of installation and click Next

How to Step By Step Install CentOS 7 on Vmware Workstation

Press ENTER to start to Install CentOS 7

Installation Summary:

Now in the Installation Summary window, select date and time. Also, by setting up keyboard layouts and software installation and system, click on ‘begin installation‘.
How to Step By Step Install CentOS 7 on Vmware Workstation

CentOS 7 System Settings-Install CentOS 7

Root Password :

Then, you’ll be prompted to enter a password for the root user, enter it.
How to Step By Step Install CentOS 7 on Vmware Workstation

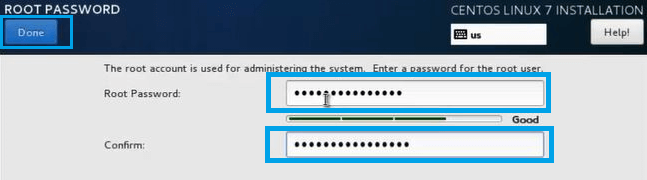

Set root Password-Install CentOS 7

If you want to create a new user, you can fill these blanks.then click on done. Now CentOS 7 installation start and system will reboot.

How to Step By Step Install CentOS 7 on Vmware Workstation

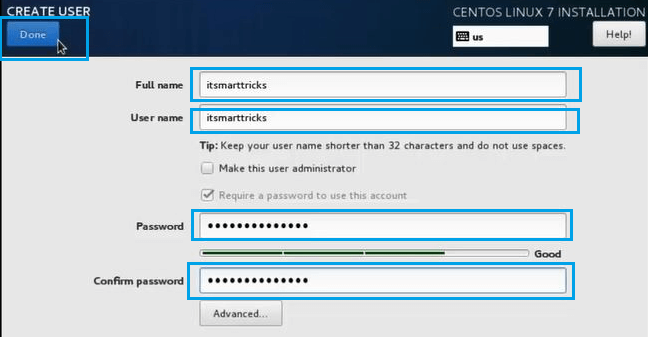

Create new User-Install CentOS 7


Similar to ‘Install CentOS 7’, there is some Linux operating system installation articles.

Also ReadInstall CentOS 7 related linux OS installation article.

»How to Install Debian 9 Stretch Step by Step With Snapshots.

»How To Install Linux Mint 18 “Sarah” – Cinnamon.

»How to Install Ubuntu 16.04.1 LTS With Snapshots.


After reboot, CentOS will be opened and you’ll be prompted to enter the user password.

How to Step By Step Install CentOS 7 on Vmware Workstation

Login Centos 7 Desktop

Your CentOs is ready to use! Congratulations. After the first login, the CentOS operating system will prompt a Welcome Page where we have to do some normal settings like select preferred Language, Input Language. Then click on Start using CentOS.
How to Step By Step Install CentOS 7 on Vmware Workstation

CentOs 7 Desktop

If you found ‘ Install CentOS 7 on Vmware Workstation ‘article useful the Like us, Subscribe our News Letter for more Linux Tutorials and Updates OR if you have something to say then feel free to comment on the comment box below.
