Configure Hikvision DVR And View Live CCTV Camera Footage On Mobile

In this article, we will look at how to see CCTV footage in the mobile by Configure Hikvision DVR And View Live CCTV Camera Footage On Mobile. Live CCTV footage from your office or home can be viewed anywhere from the mobile. Install the Hikvision DVR supported iVMS-4500 App for mobile.

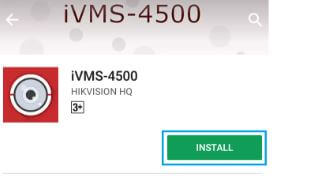

Install iVMS-4500 App:

First, you need to iVMS 4500 APP is a freely available app that is based on CCTV camera system app. You can install the iVMS 4500 APP  from Google Play store or Apple Store. please go to the link and install App.

Google Play store

https://play.google.com/store/apps/details?id=com.mcu.iVMS&hl=en

Apple Store

https://itunes.apple.com/in/app/ivms-4500-hd/id444917386?mt=8



Configure Hikvision DVR And View Live CCTV Camera Footage On Mobile

Install iVMS-4500 App-Configure Hikvision DVR

Follow to Configure Hikvision DVR:

Open iVMS 4500 APP:

After you finish installing the app, then please open iVMS 4500 APP and click on a region and select your region.click to Enter now start to configured Configure Hikvision DVR and iVMS APP.

Configure Hikvision DVR And View Live CCTV Camera Footage On Mobile

Select Your Region-Configure Hikvision DVR

Click On Left Side Bar:

Please Click on left side Bar and open slide window.

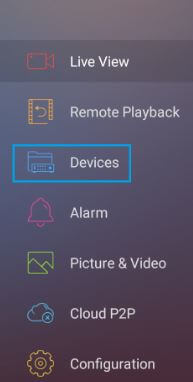

Devices:

Select devices and edit the device name (as you like, not domain name here) in the Alias field.

Configure Hikvision DVR And View Live CCTV Camera Footage On Mobile

Select devices-Configure Hikvision DVR

Launch devices:

After you select devices, Now you will have to select any one option. 1)Manual adding  2) Scan QR code 3) WiFi Configuration 4) Online Device 5) Generate QR code.

Configure Hikvision DVR And View Live CCTV Camera Footage On Mobile

Launch devices-Configure Hikvision DVR

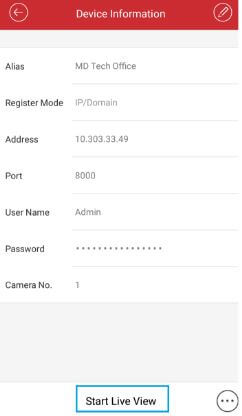

Enter details in devices dialog box:

After opening the devices, we will select “Manual Adding“. In the “manual adding” first option is Alias field, name your office in it. After that, there are HiDDNS, IP / Domain options in the Register mode, in which you will select the IP / Domain and by selecting the IP address in “Address” select port number 8000. Next, enter your Hikvision DVR’s USER ID and password. Write the number of how many cameras are in the camera number. Then click on the save button above.

Configure Hikvision DVR And View Live CCTV Camera Footage On Mobile

Fill Device Information-Configure Hikvision DVR

Start Live view :

All Hikvision DVR settings have been made in the app, now click on Start Live and view live CCTV camera footage.
Configure Hikvision DVR And View Live CCTV Camera Footage On Mobile

Click On Start Live View

That’s it, You are done. Enjoy live camera footage on a mobile device.

Configure Hikvision DVR And View Live CCTV Camera Footage On Mobile

Live Camera Footage-Configure Hikvision DVR
